80‑40 Ton Air Hydraulic Floor Jack

Product Introduction

This 80/40‑ton air‑hydraulic jack is a heavy‑duty lifting equipment specially designed for large‑size vehicles. It adopts air‑driven hydraulic system, saving much physical effort for operators. With dual‑stage lifting function, it is perfect for lifting trucks, buses, trailers and other heavy‑duty vehicles. Equipped with sturdy rubber wheels and a long operating handle, the jack can be moved and controlled conveniently. Built‑in high‑strength hydraulic cylinder ensures stable and safe lifting performance for long‑time workshop‑heavy‑load work.

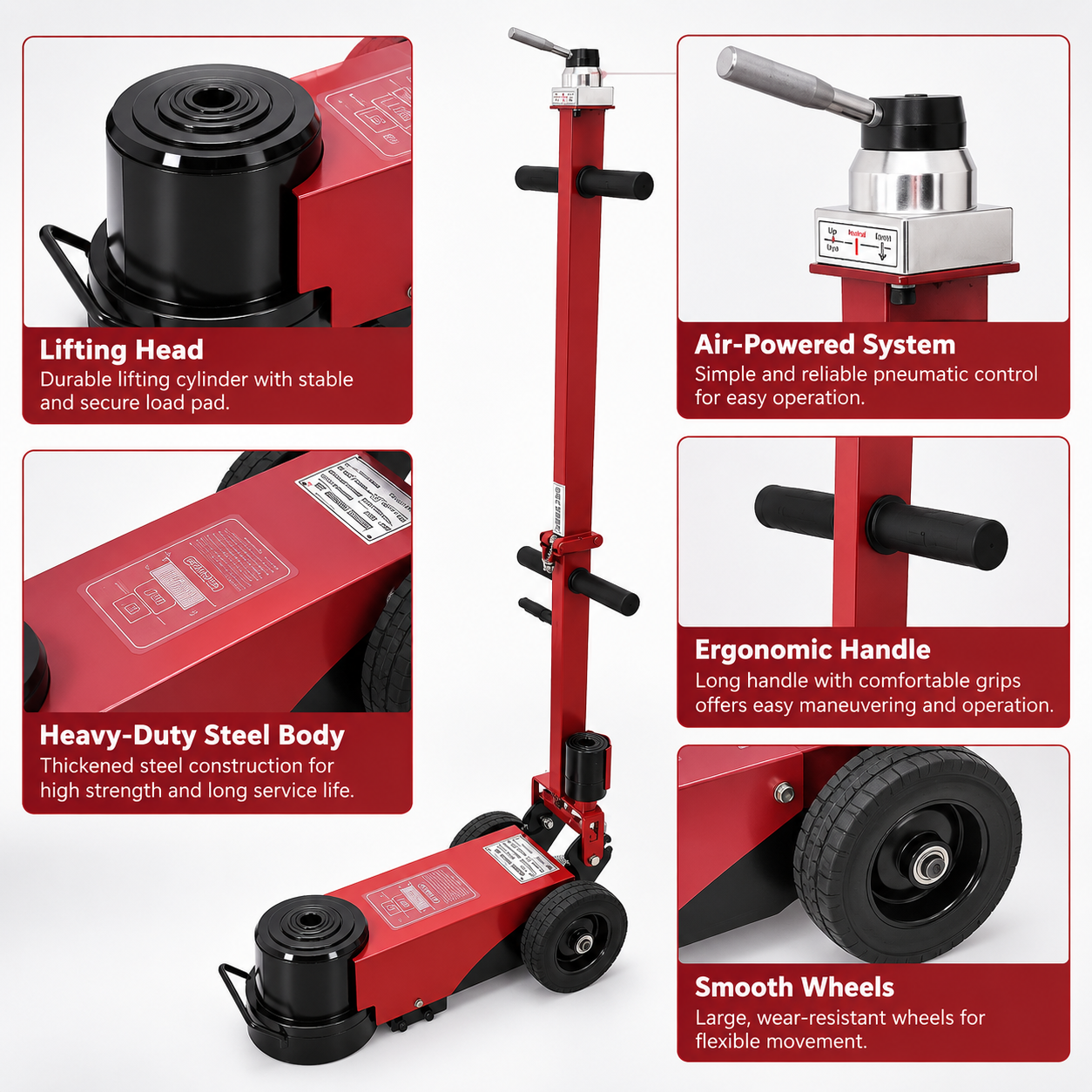

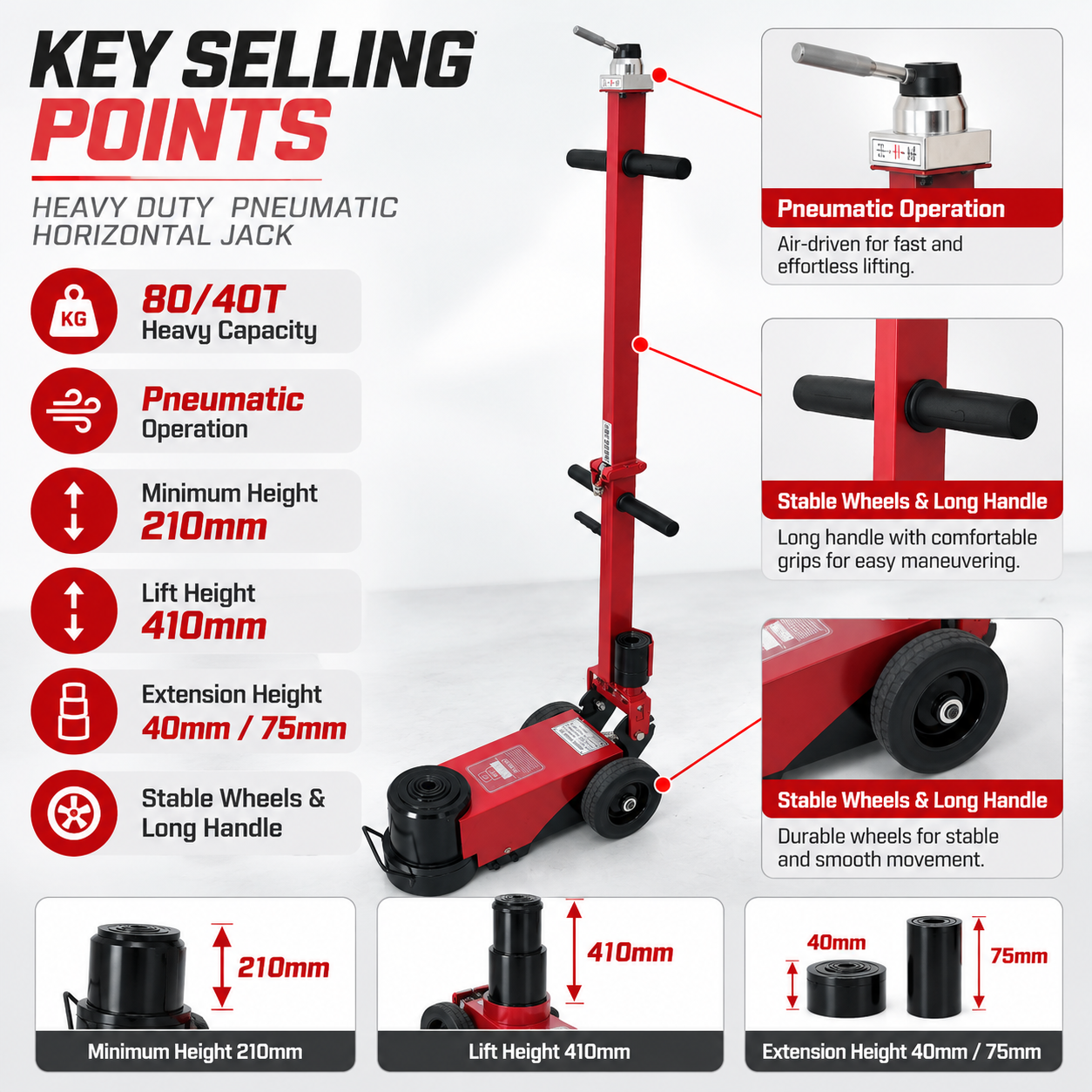

Main Features

1. Dual‑load capacity: 80‑ton /40‑ton optional, meets different lifting requirements
2. Air‑hydraulic hybrid drive, labor‑saving, high working efficiency
3. Two‑section extension sleeves: 40mm & 75mm, flexible height adjustment
4. Low‑profile minimum height 210mm, easy to reach heavy‑duty vehicle chassis
5. High‑safety overload protection system, prevent over‑pressure damage
6. Heavy‑duty solid wheels, easy to transport around maintenance sites
7. Long control handle, keep safe distance during operation
8. Durable hydraulic cylinder, support OEM customization

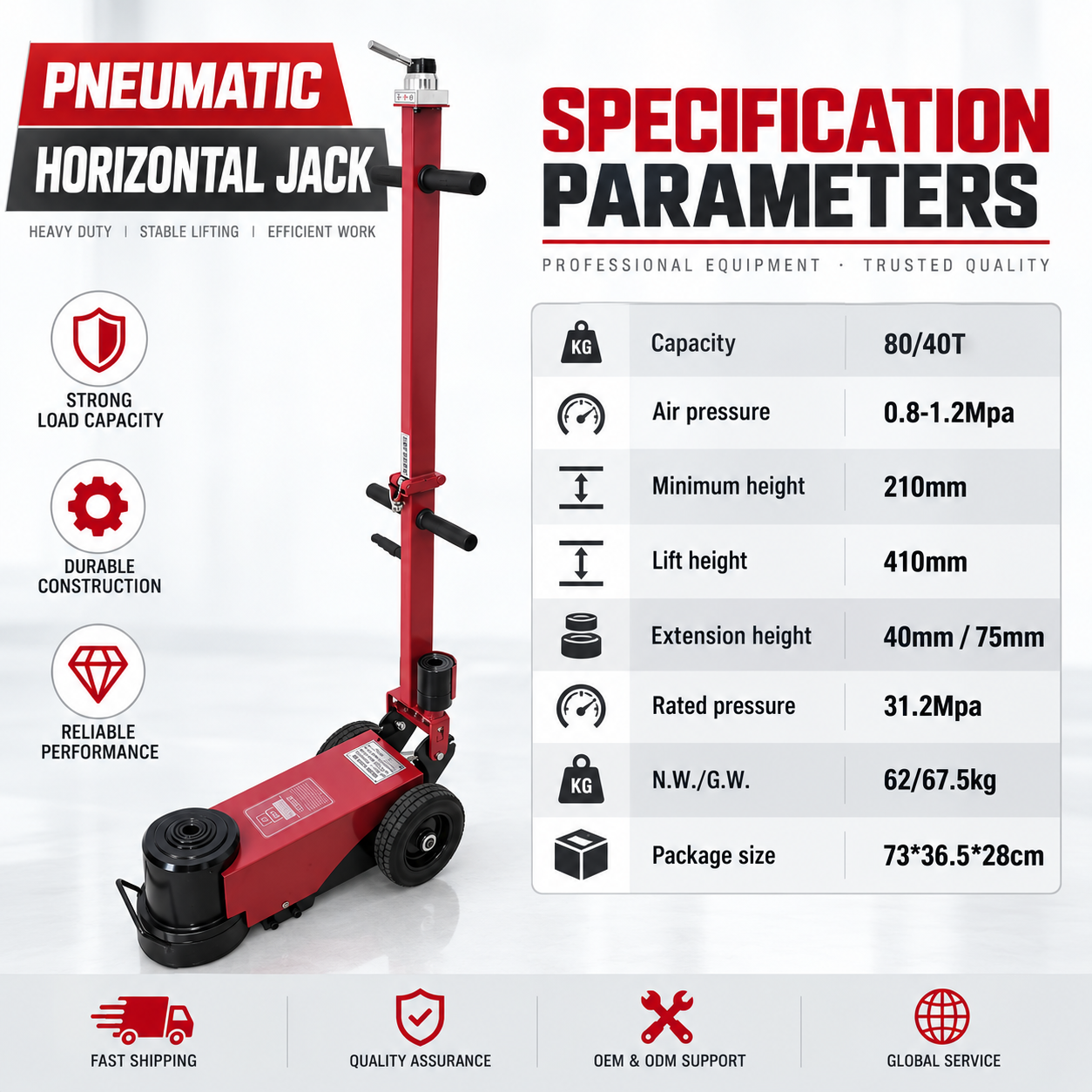

Technical Parameters

• Lifting Capacity: 80 / 40 Ton
• Working Air Pressure: 0.8‑1.2 Mpa
• Minimum Height: 210 mm
• Main Lift Height: 410 mm
• Extension Sleeve Height: 40 mm, 75 mm
• Rated Hydraulic Pressure: 31.2 Mpa
• Net Weight / Gross Weight: 62 kg / 67.5 kg

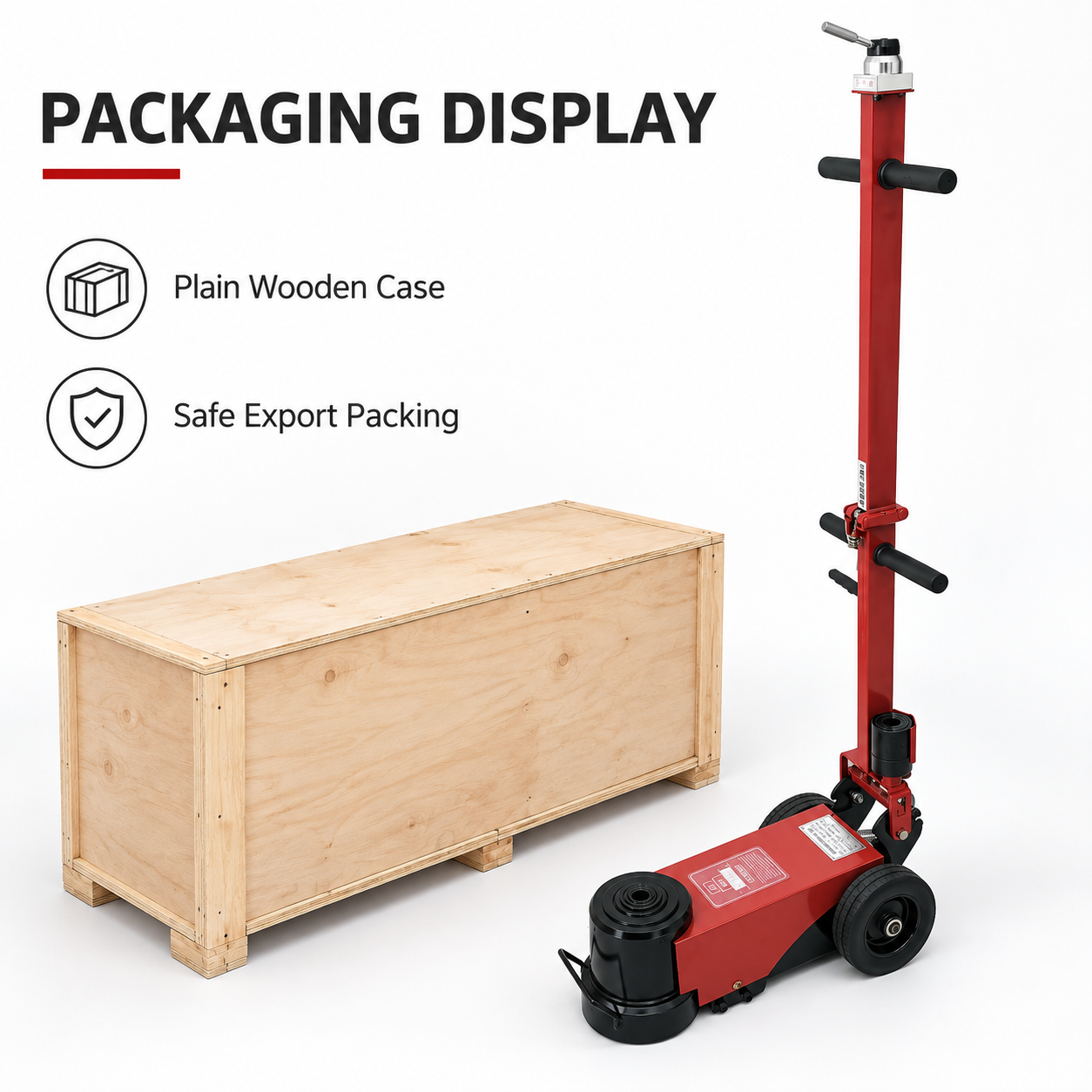

• Packing: Export Carton
• Package Dimension: 733*6.5*28 cm

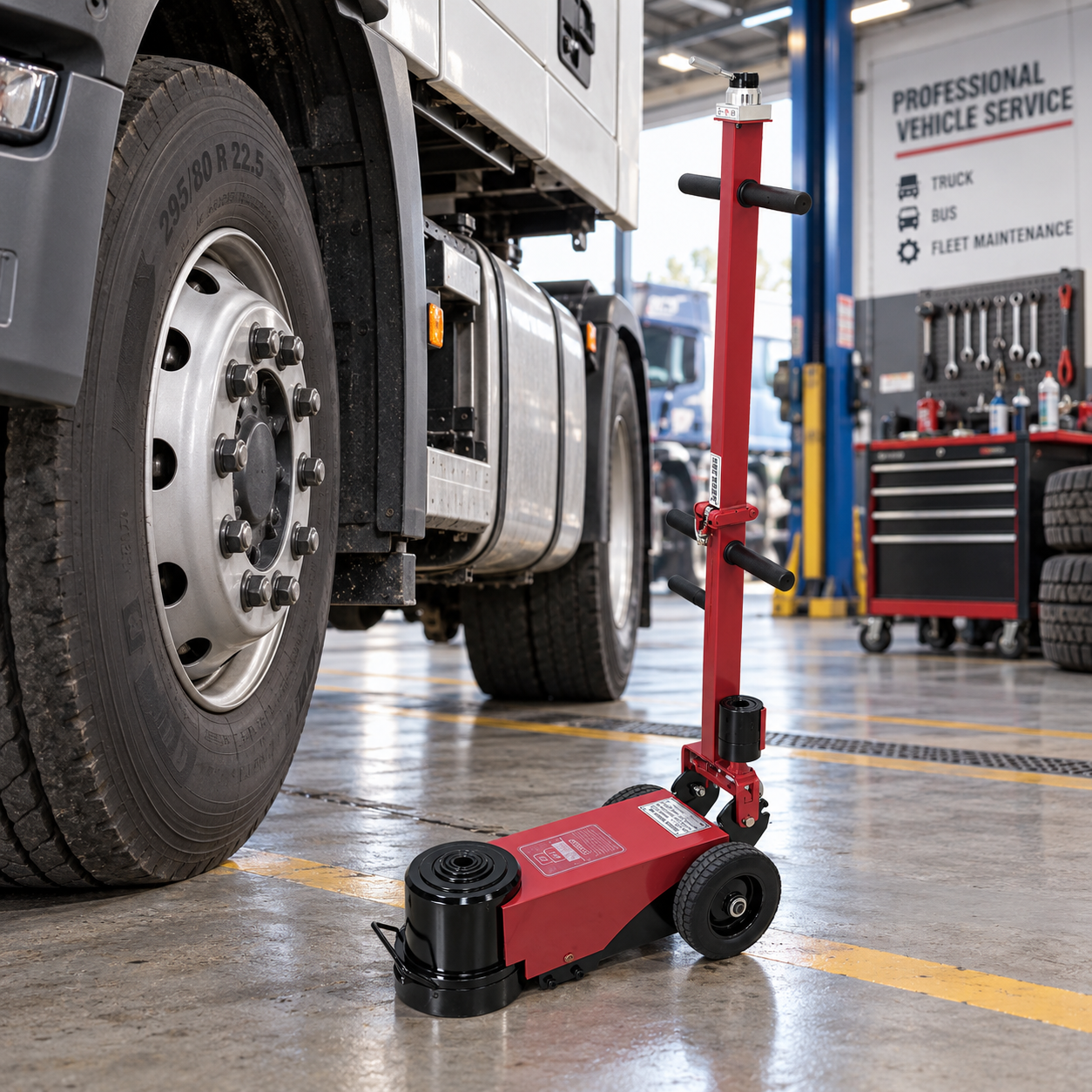

Application Scenarios

Ideal lifting tool for heavy‑duty trucks, buses, trailers, engineering vehicles. Widely used in truck repair shops, fleet maintenance stations, mining service centers and highway roadside rescue.
