Car Lift
Product Overview

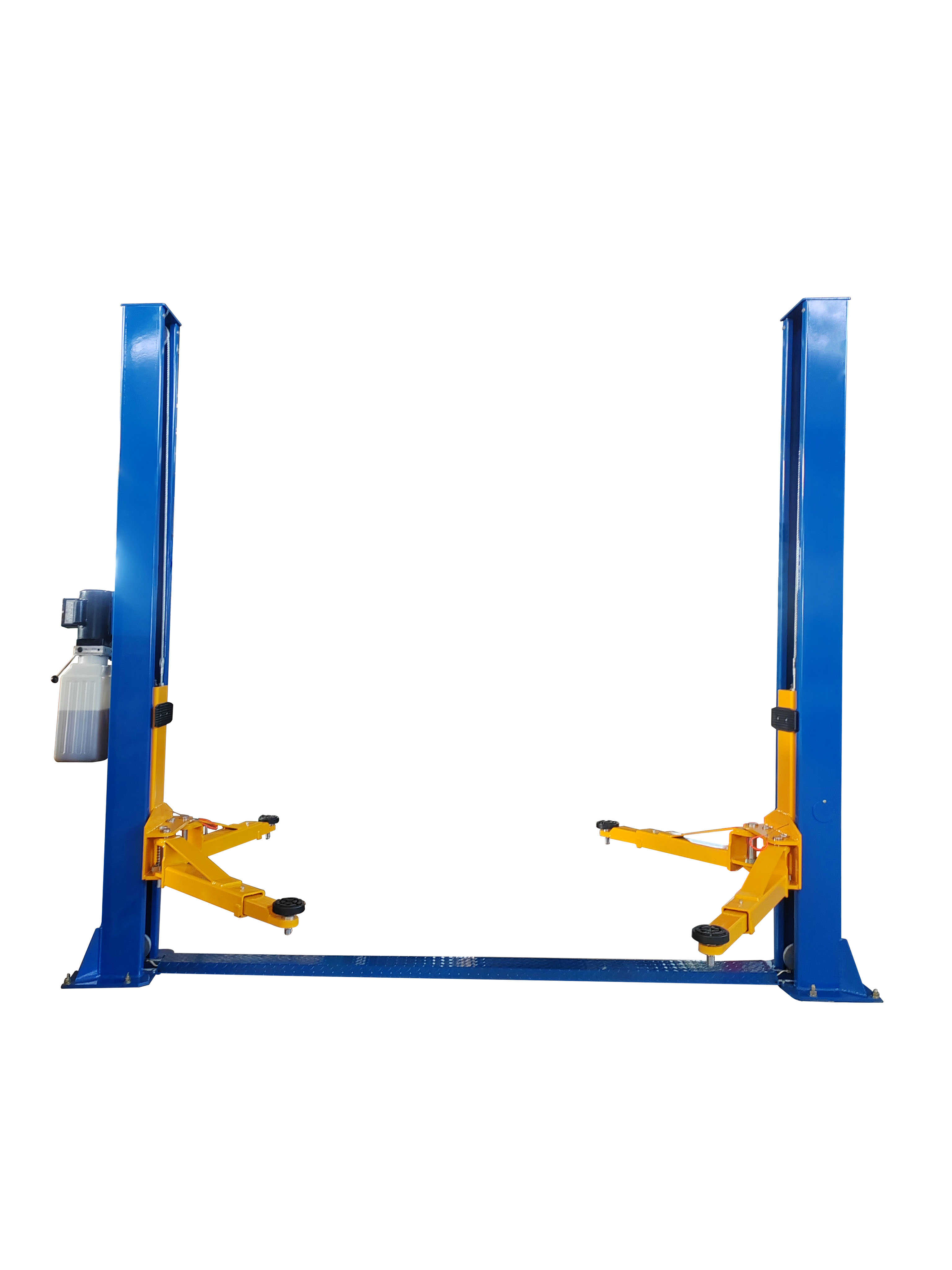

This heavy‑duty hydraulic two‑post car lift is professional‑grade auto‑maintenance equipment, widely adopted for repair shops, 4S stores, home garages and tyre service stations. It adopts sturdy double‑column steel frame and dual‑cylinder hydraulic driving system, steadily lifting sedans, SUVs and light‑duty trucks. The open‑bottom structure grants mechanics full access to car undercarriage, suspension, exhaust system and drive‑train components for overhaul, oil change, brake and tyre maintenance.

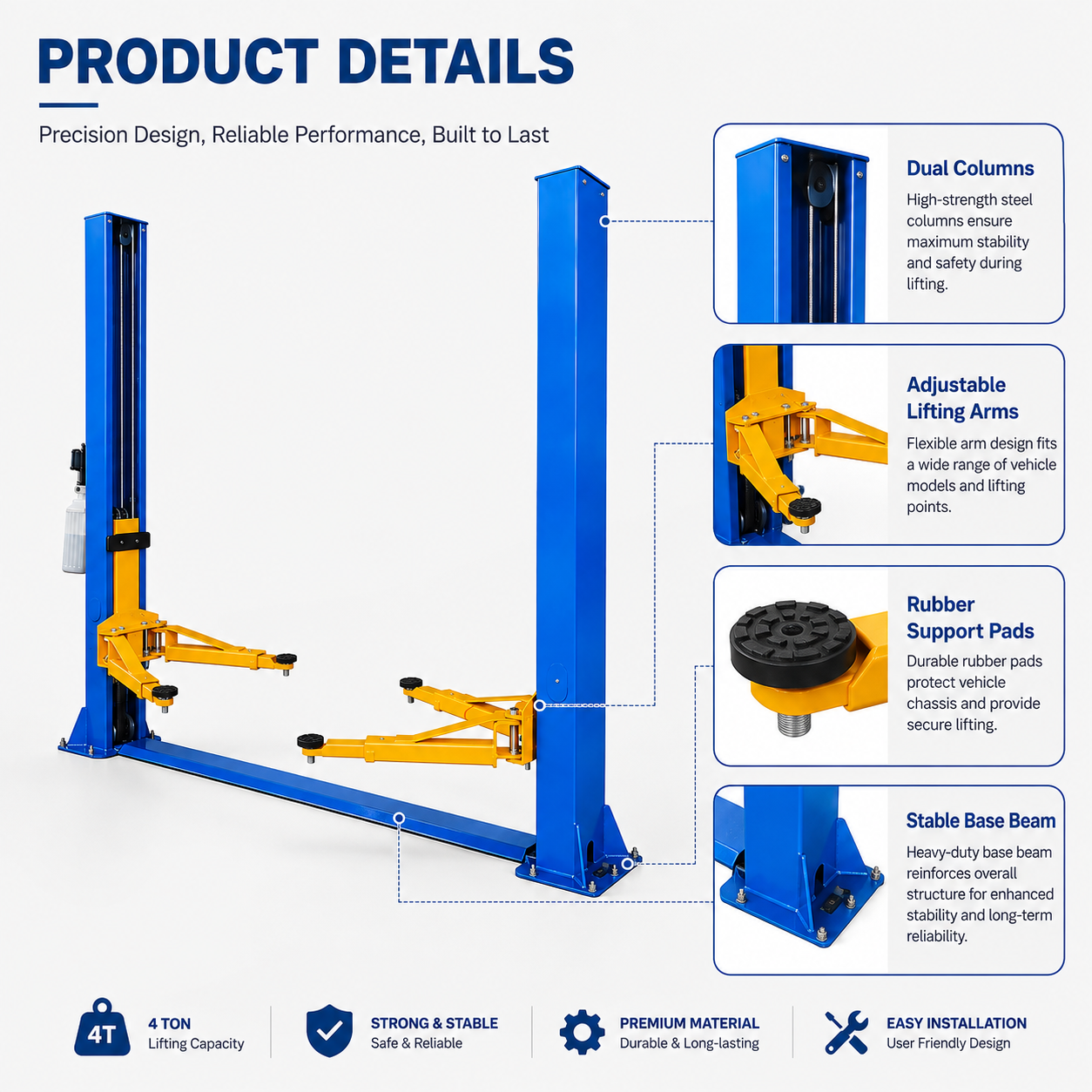

Core Features
- Solid‑Built Structure Thick integrated steel pillars and widened base plate resist deformation under long‑time heavy‑load work. Telescopic 4‑set lifting arms fit different wheelbase vehicles.
- Stable Hydraulic Power System Dual synchronous hydraulic cylinders deliver smooth, shock‑free upward and downward movement, low noise and little maintenance trouble.
- Multi‑layer Safety Protection Equipped with mechanical safety self‑locking device, emergency stop button, anti‑drop safety latches and overload‑resistant hydraulic unit. The lifting arms will be locked automatically once lifted to guarantee operation safety.
- Easy‑Operated Manual Release Two‑side manual unlocking design, convenient for workers to release the safety lock and lower the equipment.
- Space‑Saving Open‑Base Design No cross‑beam on the ground, convenient for vehicles to drive‑in and drive‑out freely.
Application Scenarios
Suitable for daily car servicing, chassis inspection, engine repair, tyre replacement, wheel alignment and all kinds of light‑duty automobile maintenance work.

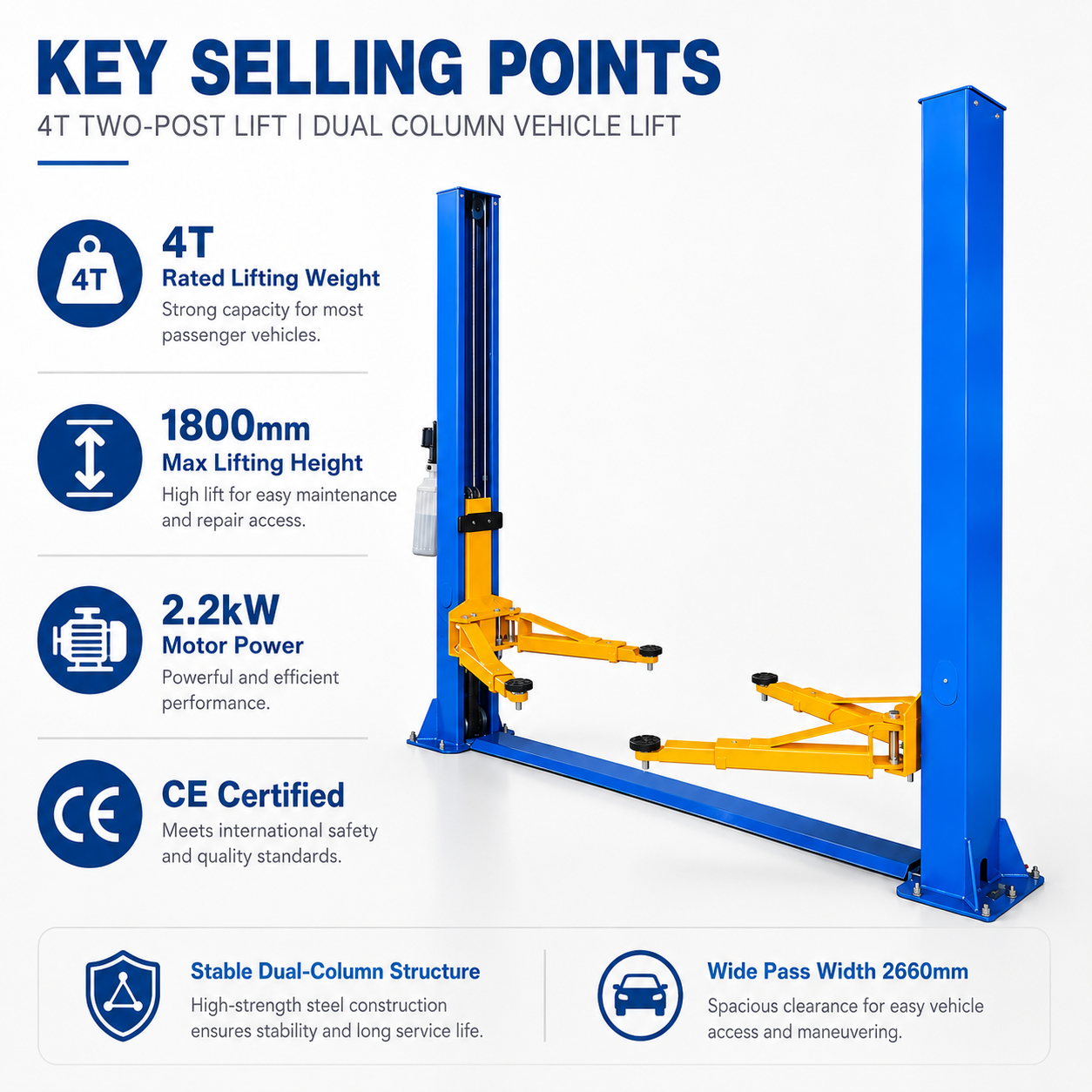

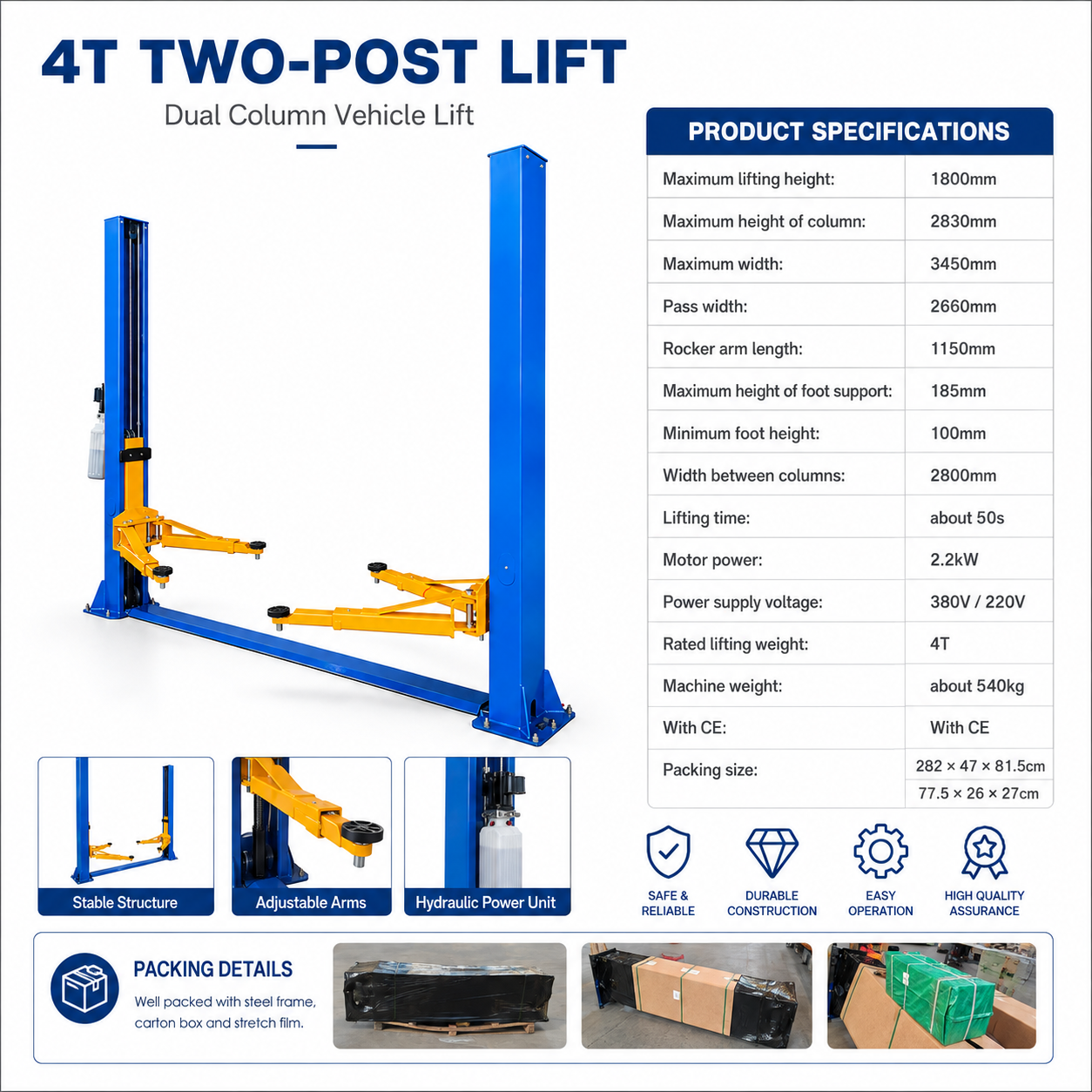

Main Specifications
Maximum lifting height: 1800mm
Maximum height of column: 2830mm
Maximum width; 3450mm
Pass width :2660mm
Rocker arm length :1150mm
Maximum height of foot support: 185mm
Minimum foot height: 100mm
Width between columns: 2800mm
Lifting time: about 50s
Motor power: 2.2kW
Power supply voltage :380V /220V
Rated lifting weight: 4T
Machine weight: about 540kg
With CE

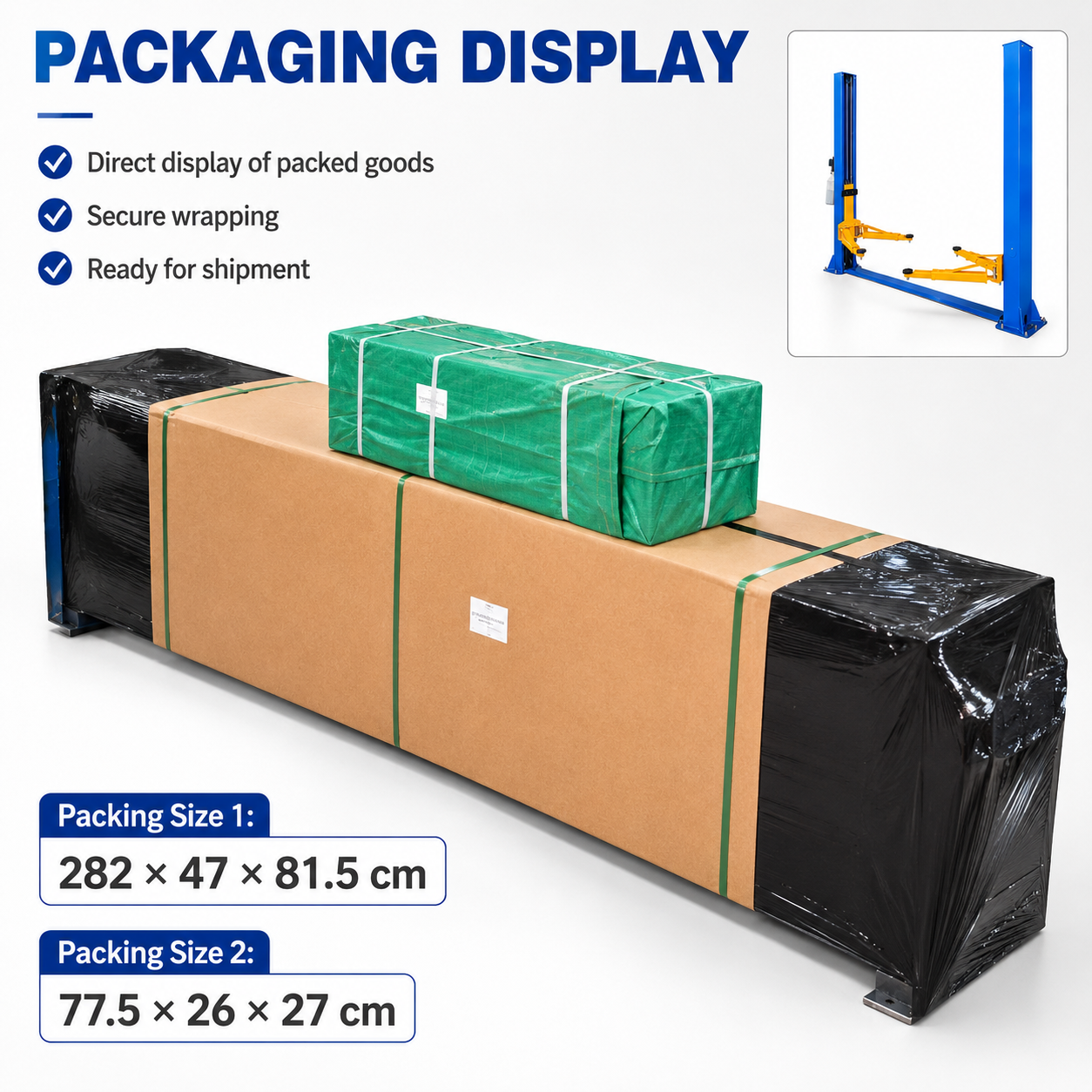

Packing size: 282*47*81.5cm
77.5 *26*27cm
