Hydraulic Equipment Kit Car Jack
1.Product Brief Description
Separate hydraulic jack is a kind of split hydraulic lifting equipment, composed of a manual hydraulic pump and a separate hydraulic cylinder. Different from integrated jacks, the pump and cylinder can be separated by high-pressure oil pipe, which greatly improves operation flexibility. It can work in ultra-narrow, deep and limited spaces, realizing precise lifting, pressing, pushing and leveling. Available in 4T, 10T and 25T tonnage, covering auto repair light duty and industrial heavy-duty scenarios.
2.Core Features & Advantages
Split Separate Design:
Pump and cylinder separated by high-pressure hose, flexible for narrow and complex working environments
Strong Lifting Capacity:
Small size with large tonnage, stable pressure output, no pressure loss
Premium Hydraulic System:
High-precision cylinder body, thickened explosion-proof oil seals, fully leak-proof, durable for frequent use
Overload Protection:
Built-in safety pressure relief valve to prevent overload damage and ensure operation safety
Single Acting & Fast Reset:
Single acting lifting, gravity reset, simple and reliable structure
Portable & Lightweight:
Compact structure, easy to carry and store, convenient for outdoor and field work
Wide Compatibility:
Suitable for auto body straightening, machinery disassembly, bridge leveling, pipeline installation
Factory Wholesale & OEM:
Support custom logo, color, packaging and tonnage customization
3.Product Specifications
4T Multifunctional Hydraulic Jack Specific Parameters
Rated Load Capacity: 4 Ton
Minimum Height: 260mm
Maximum Lifting Height: 390mm
Lifting Stroke: 110mm
Packing Quantity: 1 Set
Packing Method: Plastic Tool Box + Outer Carton
Net Weight / Gross Weight: 15.6kg / 17.5kg
Package Dimension: 61*35*22cm
10TMultifunctional Hydraulic Jack
Rated Load Capacity: 10 Ton
Minimum Height: 340 mm
Lifting Stroke: 130 mm
Quantity Per Package: 1 Set
Packaging: Plastic Tool Box + Outer Carton
Net Weight / Gross Weight: 29 kg / 30 kg
Package Dimension: 74*41*18 cm

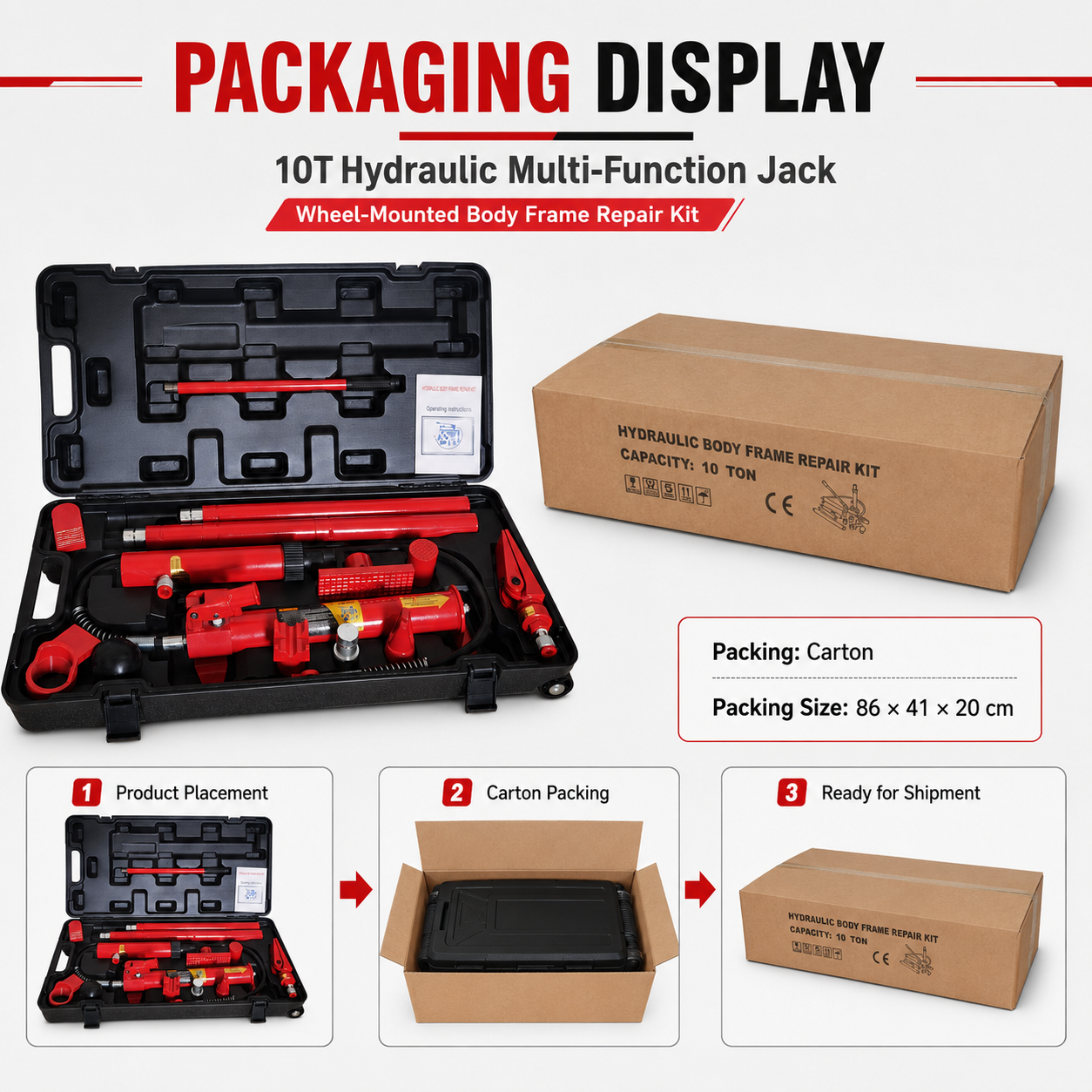

10 Ton Multifunctional Hydraulic Jack
Rated Load Capacity: 10 Ton
Minimum Height: 340 mm
Lifting Stroke: 130 mm
Quantity Per Carton: 1 Set
Packaging: Plastic Tool Box + Outer Export Carton
Net Weight / Gross Weight: 29.3 kg / 31 kg
Package Dimension: 86*41*20 cm
10 Ton Multifunctional Hydraulic Jack
Rated Load Capacity: 10 Ton
Minimum Height: 340 mm
Lifting Stroke: 130 mm
Quantity Per Package: 1 Set
Packaging: Iron Tool Box + Outer Carton
Net Weight / Gross Weight: 29.3 kg / 32 kg
Package Dimension: 65*35*17 cm
25 Ton Multifunctional Hydraulic Jack
Rated Load Capacity: 25 Ton
Minimum Height: 370 mm
Lifting Stroke: 150 mm
Quantity Per Package: 1 Set
Packaging: Iron Tool Box + Outer Carton
Net Weight / Gross Weight: 43 kg / 44 kg
Package Dimension: 65*35*18 cm
4.Application Scenarios
Automotive repair: sheet metal shaping, frame straightening, body correction, chassis maintenance
Industrial maintenance: equipment lifting, machinery disassembly and assembly, position correction
Construction & bridge: component leveling, foundation settlement adjustment, steel structure installation
Logistics & warehouse: heavy cargo local lifting and position adjustment
